Specification
Stainless Steel Heavy-Duty Barrel Bolt

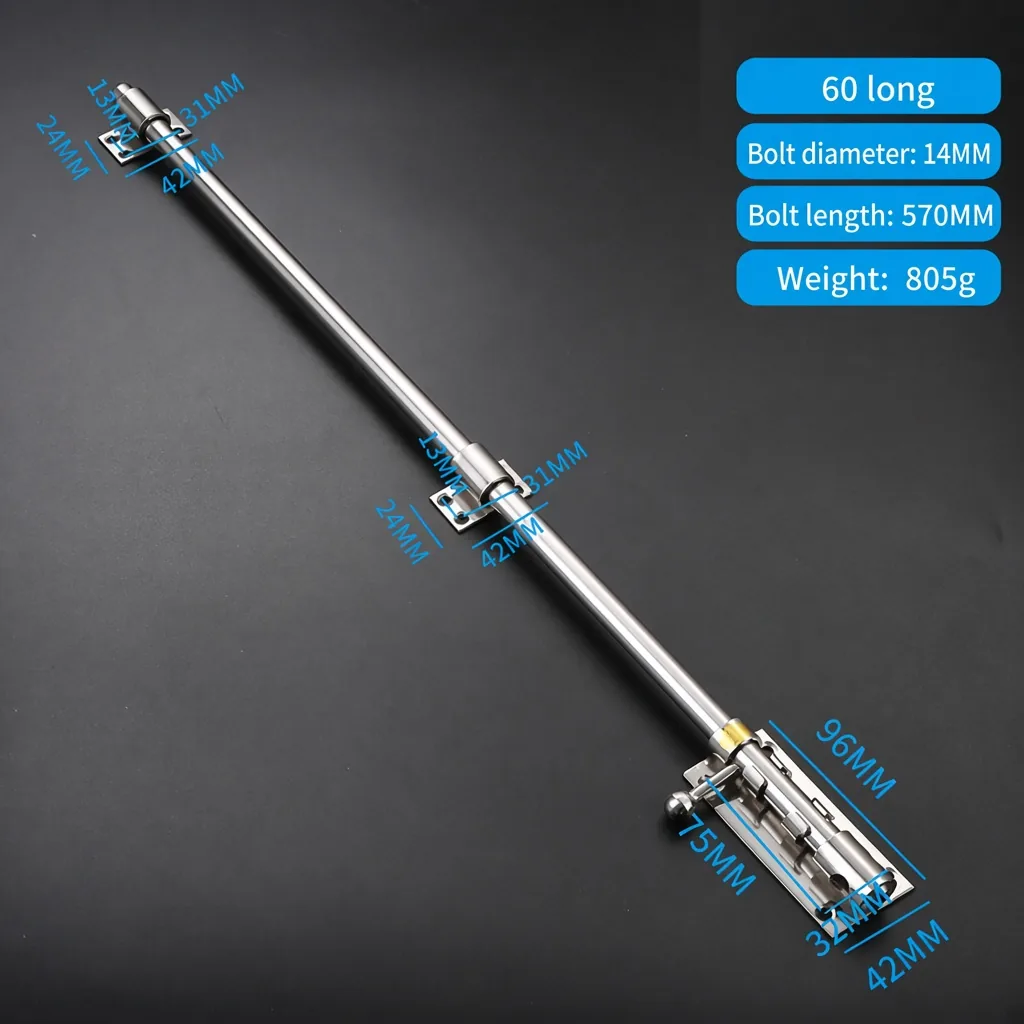

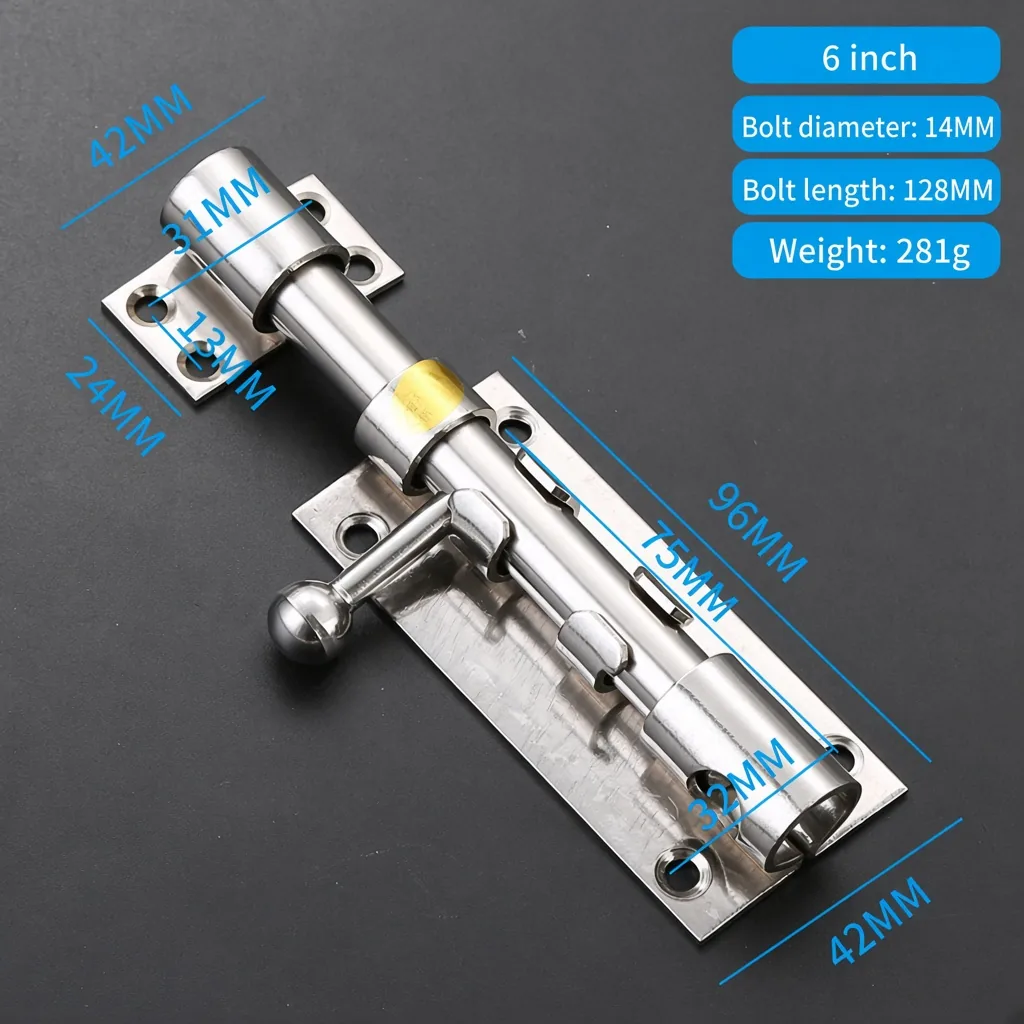

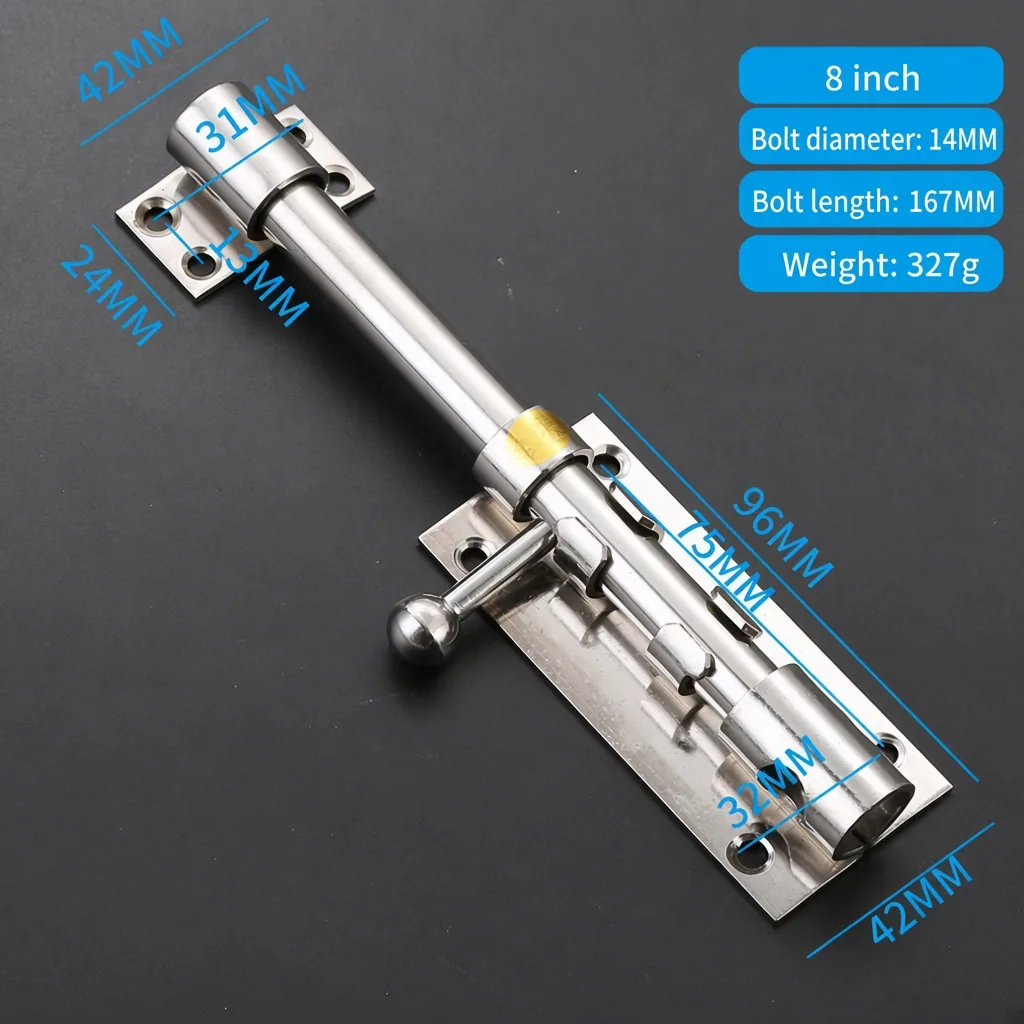

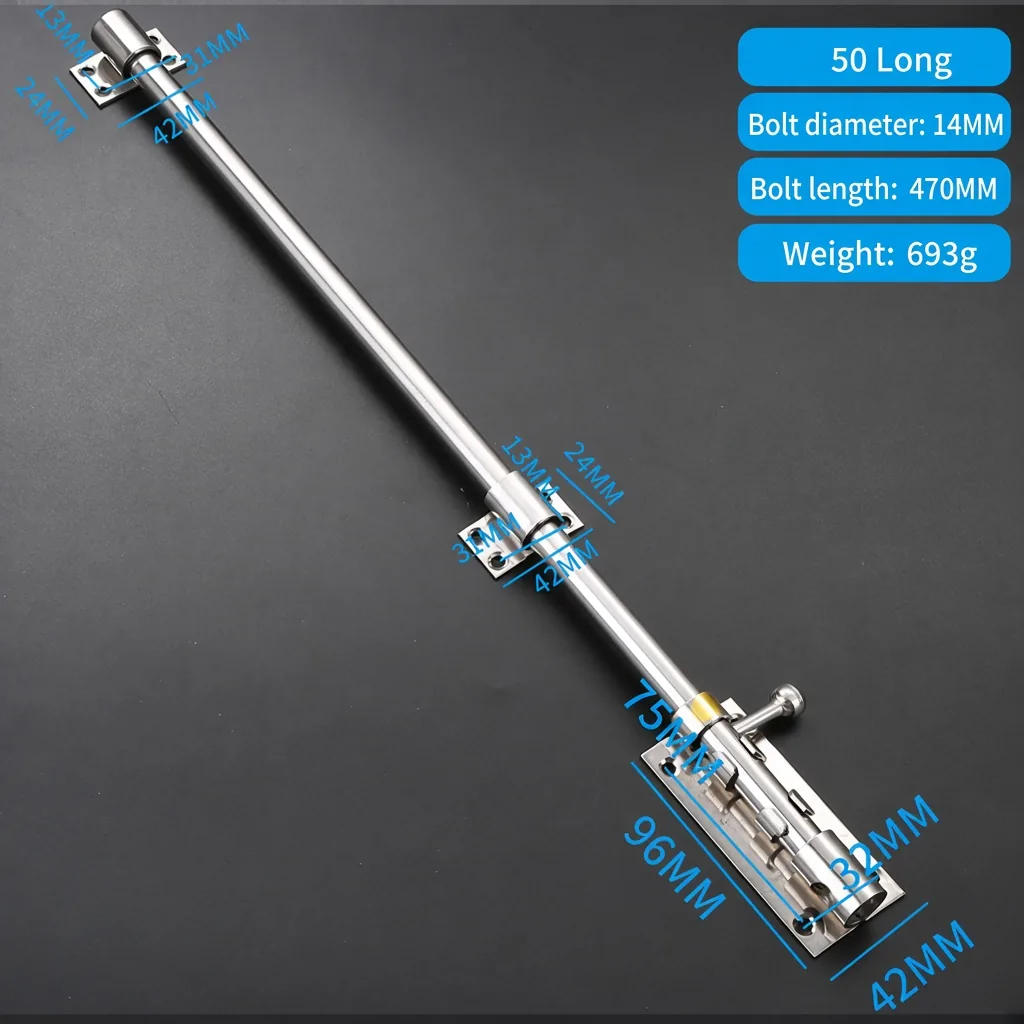

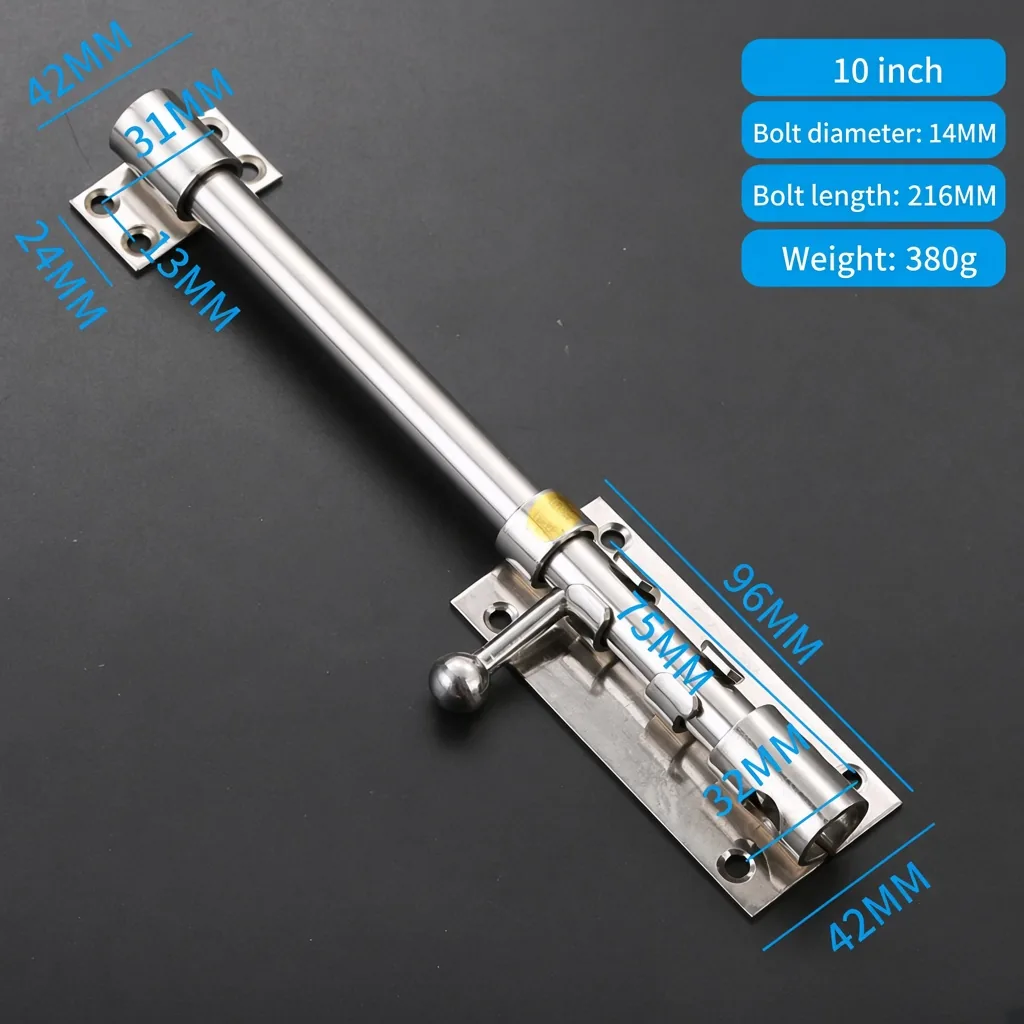

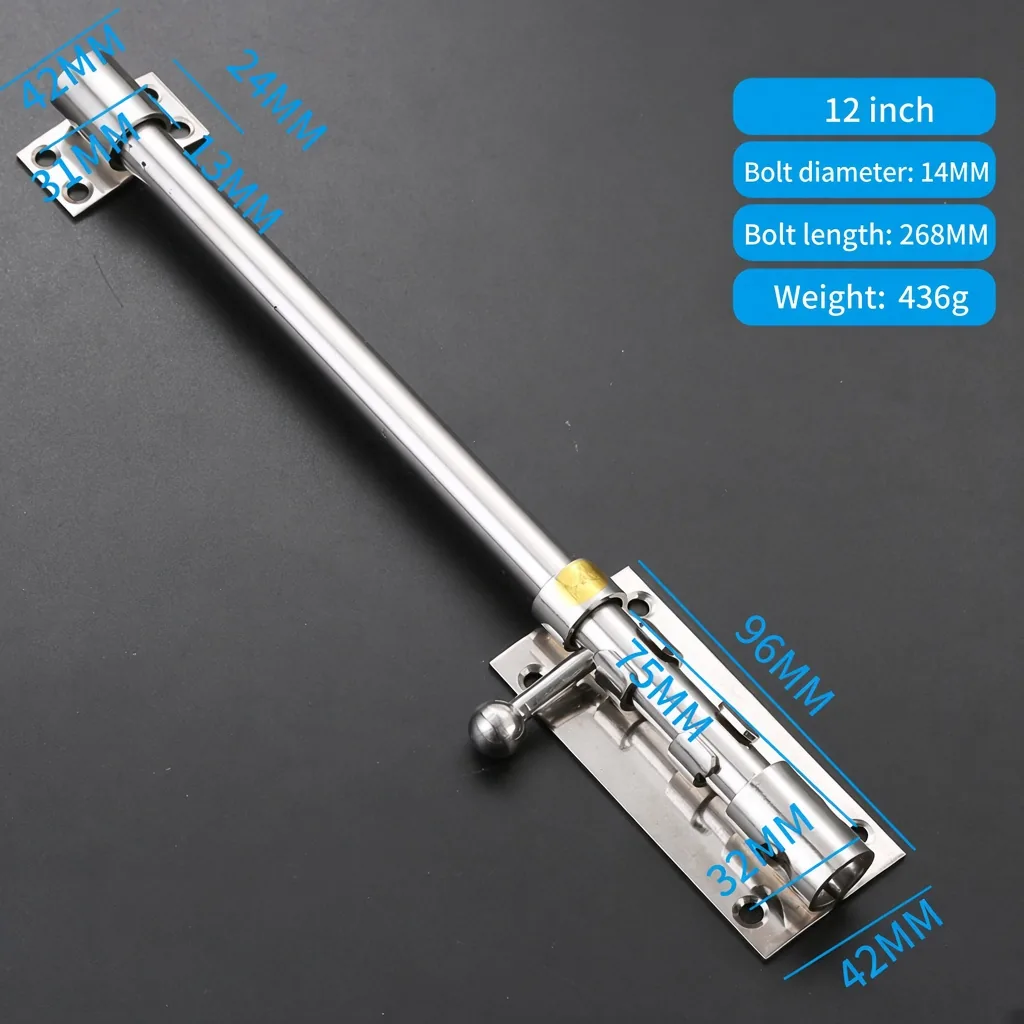

The blue badges were checked against the source photographs. All six list a 14 mm bolt diameter. The bolt lengths and weights are 570 mm and 805 g for 60 long, 470 mm and 693 g for 50 long, 268 mm and 436 g for 12 inch, 216 mm and 380 g for 10 inch, 167 mm and 327 g for 8 inch, and 128 mm and 281 g for 6 inch. Material: Stainless steel. Finish / color: Brushed silver. Length names follow the supplier labels. A SUS304 mark appears on the detail photograph, but it is not treated as a separate certificate for every size. Confirm dimensions, grade and supplied fittings with the quotation. Select the required specification and quantity, then request a quotation. Final price, MOQ, packing and freight are confirmed in the quotation.
- Material
- Stainless steel
- Finish
- Brushed silver
Nominal specification codes. Please confirm dimensions and thickness against your drawing before ordering.

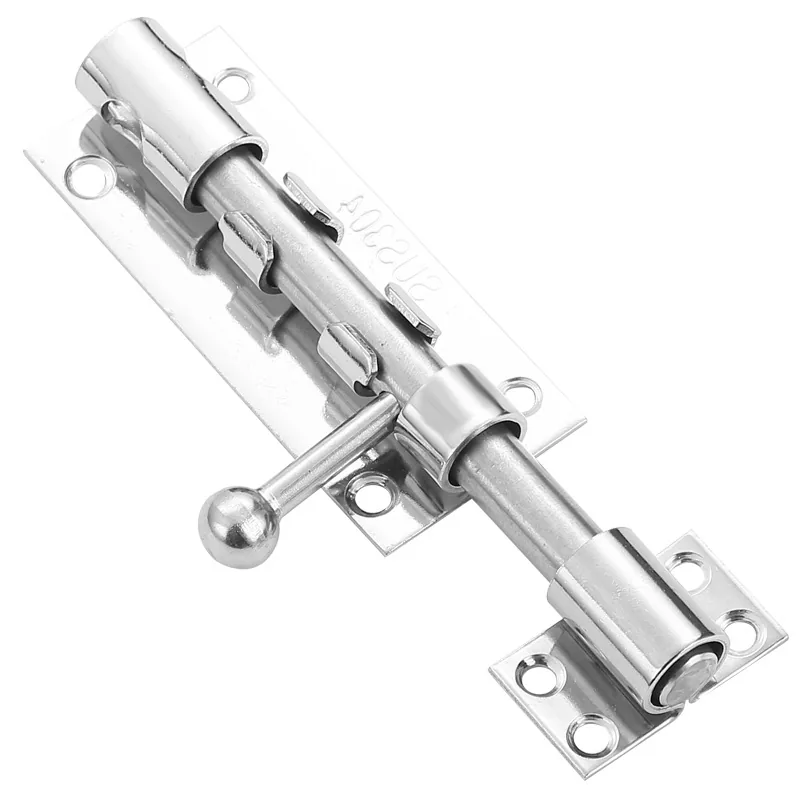

Length names follow the supplier labels. A SUS304 mark appears on the detail photograph, but it is not treated as a separate certificate for every size. Confirm dimensions, grade and supplied fittings with the quotation.
Price, minimum quantity, packaging and lead time are confirmed with your quotation.
SKU images
All specifications
